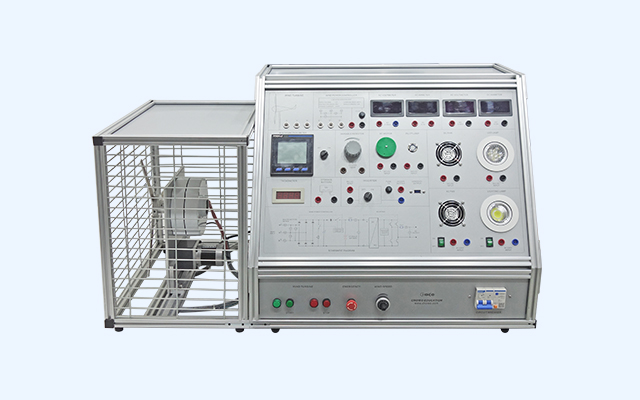

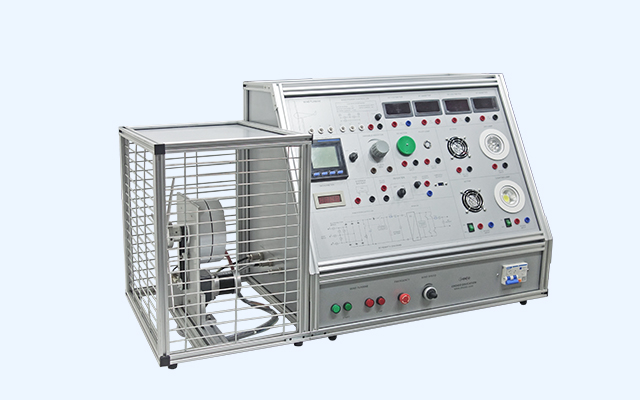

| • The unit demonstrates the practical
application of such a combined system for student to conduct the |
| investigation of wind power
generation. |
| • Three phase AC permanent magnet generator
is used for the wind power generation, which is driven |
| by a DC gear motor to simulate the wind
turbine working under different wind speed. By this way to |
| achieve system performance inside the
laboratory irrespective of outside conditions. |
| • Maximum power point tracking type wind
controller is adopted for the high efficiency power generation |
| control. Multifunctional meter is
adopted for system voltage / current monitoring, with LCD screen. |
| • Dedicated instrumentation includes, AC/DC
voltmeter and ampere meters for investigation of system |
| efficiency and characteristics. |
|
| > TRAINING CONTENT |
| • Wind power generator simulated wind speed
experiment |
| • Wind power generator output voltage
experiment |
| • Wind controller braking experiment |
| • Wind power generator V/I output
characteristic curve experiment |
| • Storage battery charging experiment |
| • Wind controller resistance load
experiment |
| • DC resistive and inductive load
experiment |
| • AC resistive and inductive load
experiment |
| • Integrated load experiment |
