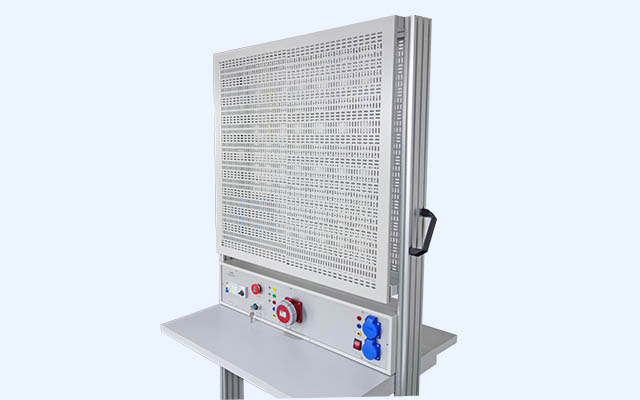

| • This is a mobile type electrical
installation training system, with detachable grid wall and independent |
| power control unit on both sides, making
it suitable for two students to operate on it at the same time. |
| • Perforated grid wall of powder coated
sheet steel is used for the flexible electrical installation, student |
| can select proper components to carry
out the electrical arrangement and finish the wiring themselves |
| according to the training requests. |

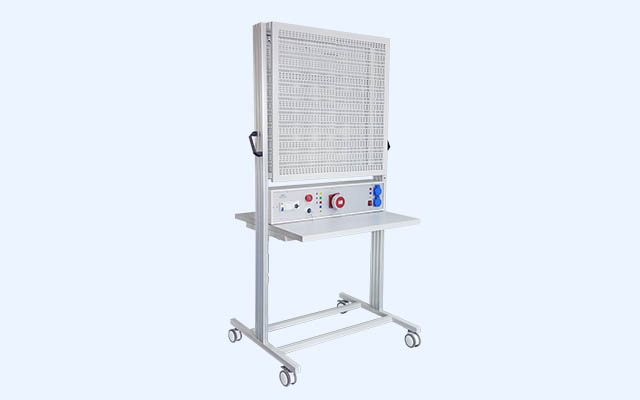

| • The complete structure is movable with
lockable truckles on bottom and handles on side columns, |
| the upper frame and tabletop are
separable, as well as the power control cabinet. |
| • CEE socket, 4mm insulated terminal and
waterproof socket are adopted for the safe connection of |
| power supply system. Thanks to the
universal and open structure, this platform can be used for |
| a variety training contents of
installation technology using different experiment components and parts. |
|
| > TRAINING CONTENT |
| • Electrician wiring and installation
practical training |
| • Three phase asynchronous motor control |
| - Direct starting |
| - Reduced voltage starting |
| - Contactor inching / self-locking |
| - Star/Delta automatic control |
| - Forward and reverse |
| - Contactor / Button / Double
interlocking control |
| - Remote and local control |
| - Sequential control |
| - Automatic round trip control |
| - Dynamic braking control |
| • Incandescent lamp control circuit |
| • Fluorescent lamp control circuit |
| • Touch switch and voice operated switch
control circuit |
| • Installation of single / three phase
electricity meter |
| • Current transformer application circuit |
