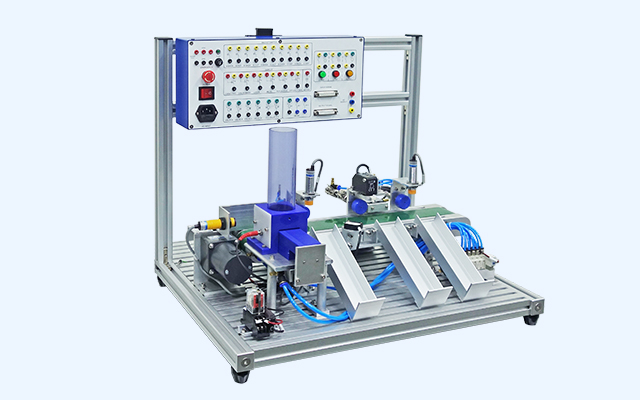

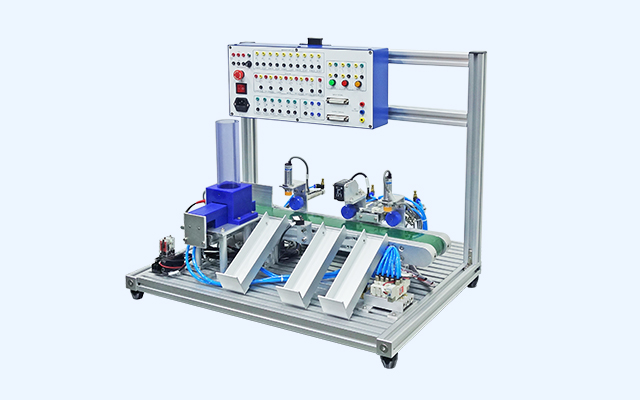

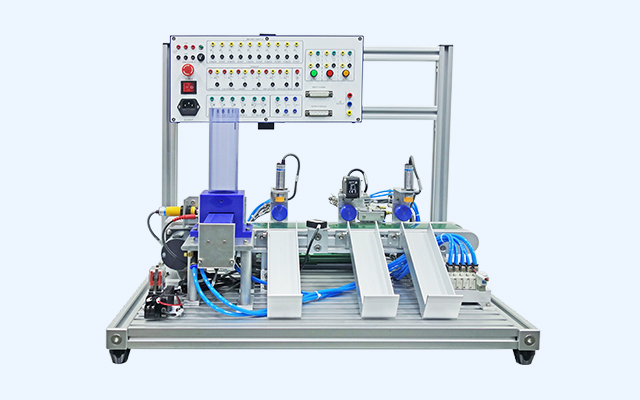

| • This is a comprehensive mechatronic training and simulation system, it offers a complete solution for |
| the study of modern factory automation and integrates a variety of technological applications. |
| • Industrial grade components and control methods are used to fully demonstrate the factory production |
| line system, including feeding unit, transfer unit, sorting unit and modular electrical control unit. |
| • The whole system are minitype designed with vertical and modular operating structure. Since the |
| electrical control panel is configured with clamping mechanism and integrated serial ports, it can |
| be installed or taken off easily from the frame area without complicated wiring operation. At the same |
| time, additional electrical units can be added freely on it for combined training purpose. |
| • Standard grooved aluminium profile is used as the mounting base of complete system, making the |
| complete system easy to be installed or modified for further exploration. |
|
| > TRAINING CONTENT |
| Mechanical Structure Application |
| • Biaxial cylinder and guide slot formed material blanking mechanism |
| • DC motor and conveyor belt formed transfer mechanism |
| • Cylinder and sensor formed material separation function |
| Pneumatic Structure Application |
| • Bus board |
| • Cylinder |
| Electrical Control Application |
| • Capacitive sensor, laser sensor, reflective sensor, fiber optic sensor, metal sensor, |
| magnetic sensor & color sensor |
| • Single solenoid and double solenoid valves |
| Programming Application |
| • Sequential structure, selective structure and cycle structure |
| • Switching value realized cylinder motion control, conveyor start/stop control, indicator control |
| and sensor feedback. |
