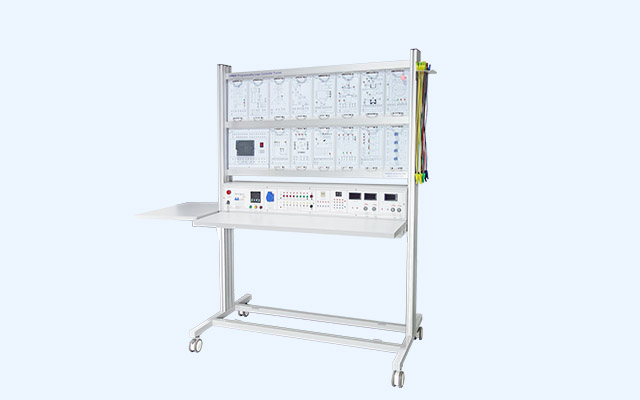

CAP-101S Programmable Logic Controller Trainer

    DETAILS

      • The training systems focus on conveying  basic knowledge and information on programmable logic control
         (PLC). The fundamentals and operation of  PLC systems are graphically explored using a multitude of
         examples, explanations, exercises and  practical assignments.
      • It covers a huge training range which is  widely used in industrial application, logic input and output elements
         of different control methods are  provided on common panel for experimental development.
      • Modular experimental panels are adopted  for flexible training, coming with standard height that can easily
         be inserted into the experiment stands.

    > TRAINING CONTENT
        PLC mainframe
      • Work with STEP 7 programming software
      • Data types
      • Creating statement lists
      • Programming languages STL, LAD and FBD
      • Programming of binary operations
      • Programming of counters and time makers,  comparison and arithmetic functions
      • Program structure, invoking subroutings
      • Putting into operation and testing

        Demo systems
      • Motor control system
      • Automatic water tower water level control
      • Analog television transmitting tower
      • Automatic goods feeding and loading  system
      • Automatic liquids mixture control system
      • Automatic punching machine control system
      • Automatic molding machine system
      • Automatic washing machine control system
      • Automatic vending machine system
      • Traffic light control system
      • Automatic mail sorting system
      • Plating control system
      • 4-layer elevator control system
      • Relay control experiment
