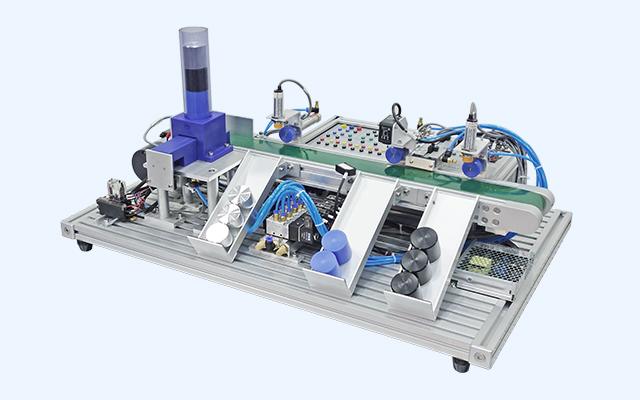

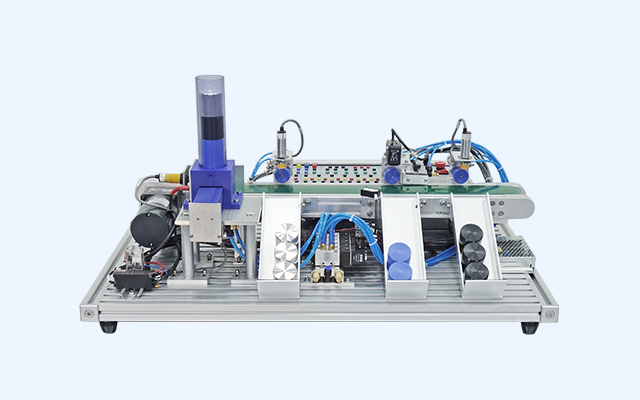

| • This is a comprehensive mechatronic training and simulation system, it offers a complete solution for |
| the study of modern factory automation and integrates a variety of technological applications. |
| • Industrial grade components and control methods are used to fully demonstrate the factory production |
| line system, including feeding unit, transfer unit, sorting unit and electrical control box. |

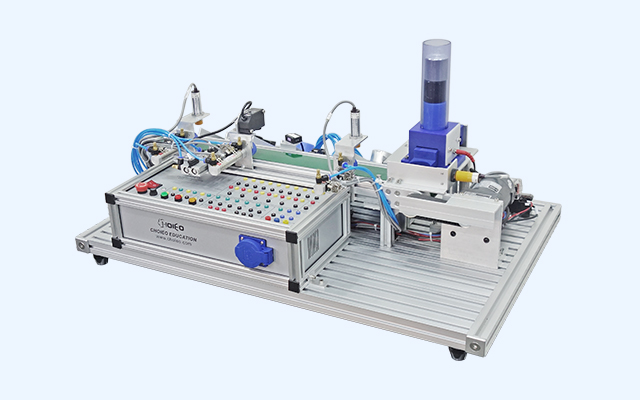

| • The input and output signal cables of each actuator are led to 2mm sockets on electrical control panel, |
| making it easy to be connected with external PLC control mainframe to perform complete training. |
| • Standard grooved aluminium profile is used as the mounting base of complete system, making the |
| complete system easy to be installed or modified for further exploration. |
|
| > TRAINING CONTENT |
| Mechanical Structure Application |
| • Biaxial cylinder and guide slot formed material blanking mechanism |
| • DC motor and conveyor belt formed transfer mechanism |
| • Cylinder and sensor formed material separation function |
| Pneumatic Structure Application |
| • Bus board |
| • Cylinder |
| • Solenoid valve |
| • Direction & Speed & Sequence control |
| Electrical Control Application |
| • Capacitive sensor, laser sensor, reflective sensor, fiber optic sensor, metal sensor, |
| magnetic sensor & color sensor |
| • Single solenoid and double solenoid valves |
| Programming Application |
| • Sequential structure, selective structure and cycle structure |
| • Switching value realized cylinder motion control, conveyor start/stop control, indicator control |
| and sensor feedback. |
