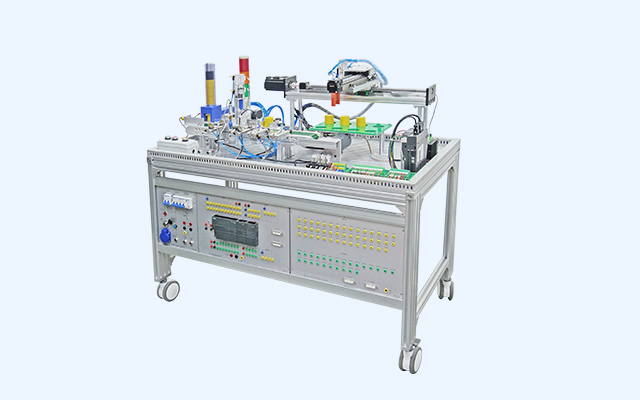

| • This is a comprehensive mechatronic training and simulation system, it offers a complete solution for |
| the study of modern factory automation and integrates a variety of technological applications, including |
| mechanical & electrical & electronic & information & sensor technologies, etc. |
| • Industrial grade components and control methods are used to fully demonstrate the factory production |
| line system, up to seven stations are built on the platform, including feeding unit, transfer unit, drilling |
| unit, stopper and transit unit, sorting unit, triaxial handling unit, horizontal storage unit. |
| • The input and output signal cables of each actuator are led to serial ports, at the same time, all the |
| power lines are gathered on one seat, by this way to achieve quick connection of the whole |
| system and ensure the safe pluggable ability for practical operation. |
| • When the serial ports of controller panel and I/O panel are connected, user can upload the standard |
| programs to run the system process directly for demonstration purpose without further operation. |
| When conducting the independent design and programming training, by disconnecting the serial |
| port to achieve an open control mode, all wiring can be done through the 4mm safety sockets with |
| pluggable cables. |
| • The experiment panel adopts modular design, coming with standard height that can easily be inserted |
| into the frame area. The complete unit is movable and lockable, with complete aluminium profile |
| structure. |
|
| > TRAINING CONTENT |
| Mechanical Structure Application |
| • Biaxial cylinder and guide slot formed material blanking mechanism |
| • DC motor and conveyor belt formed transfer mechanism |
| • Biaxial cylinder and DC gear motor formed drilling simulation mechanism |
| • Sensor and storage unit formed warehouse with data feedback function |
| • Servo motor, ball screw, stepping motor and synchronous belt guide rail formed cantilever type carrier |
| Pneumatic Structure Application |
| • Bus board |
| • Cylinder |
| • Solenoid valve |
| • Direction & Speed & Sequence control |
| Electrical Control Application |
| • System I/O, digital quantity, high speed quantity, extended module |
| • Limit sensor, photoelectric sensor, fiber optic sensor, metal sensor, magnetic sensor and color mark sensor |
| • Power supply module, controller module and interface module |
| • Servo driver, stepping driver |
| • Single solenoid and double solenoid valves |
| Programming Application |
| • Sequential structure, selective structure and cycle structure |
| • Switching value realized cylinder motion control, DC motor control, conveyor start/stop control, indicator control |
| • Pulse value realized stepping motor control, servo motor control |
