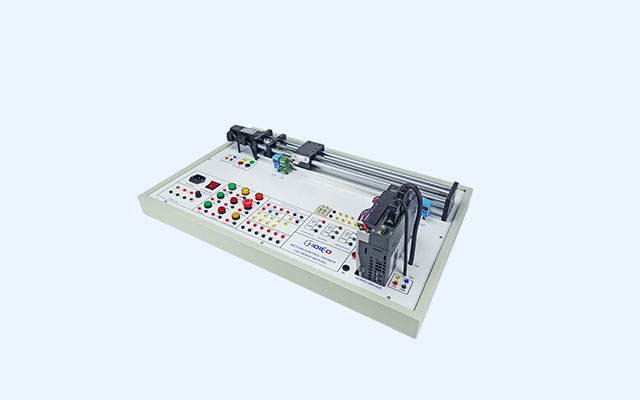

CAP-501C Servo Motor Linear Control Trainer

  • This unit is a servo motor based linear  motion control system, which covers basic application for
     programmable logic controller, servo  motor control technology and sensor technology. Thanks to the modular
     design, it could be used as a separated  demonstration unit with an existing PLC system or programming unit.
  • Various linear motion positioning modes  could be performed in this system using different feedback elements,
     such as servo pulse positioning, Z phase  positioning, dial switch positioning and round trip positioning modes.

> TRAINING CONTENT
  • Servo motor and driver
  • Proximity sensor
  • Dial switch value input
  • Servo drive motion control
  • Different motion positioning
  • Industrial application
